[ST3 4 ME]

Own a set of aftermarket wheels or are you running different tires? Post pictures by using the format below.

I did a search and didnt find anything that compiles all of our cars with the various wheel setups available, so i created this one.


To keep things clean and informative please post in this format:

• Brand Wheel with specs
• Brand Tire with specs
• If the wheels are custom in any way please specify what made them custom
• Image from front
• Image from side
• Image from rear
• Image from 3/4 front
• Image from 3/4 front with wheels fully clocked the direction the car is turned
• Image from 3/4 rear
• Optional: Image from front without bumper and splash guards off

Tips for good images:

1. Take shots at a low angle and from 30-50ft away.
2. Take pictures in good lighting(i.e. sun to your back, sun over head, in a very well lit garage with enough light to see dark wheels.
3. use a DSLR with a telephoto if possible, if not try finding a point and shoot.
4. If you are using an smartphone try to only shoot during the day time.
5. Most of all, this is for informational purposes only, so dont get crazy and photoshop.



[ST3 4 ME]

Reserved for my Cosmis Racing Wheels



[[email protected]]

• Fifteen52 Tarmacs
• Custom Drilled to 5x108
• 18x9.5 et45
• 225/40-18 Federal 595
• NO fender mods

Also they are sold and shipped today. New winter wheels go on next week, nothing like a 17x9 with a stretched snow tire for winter .

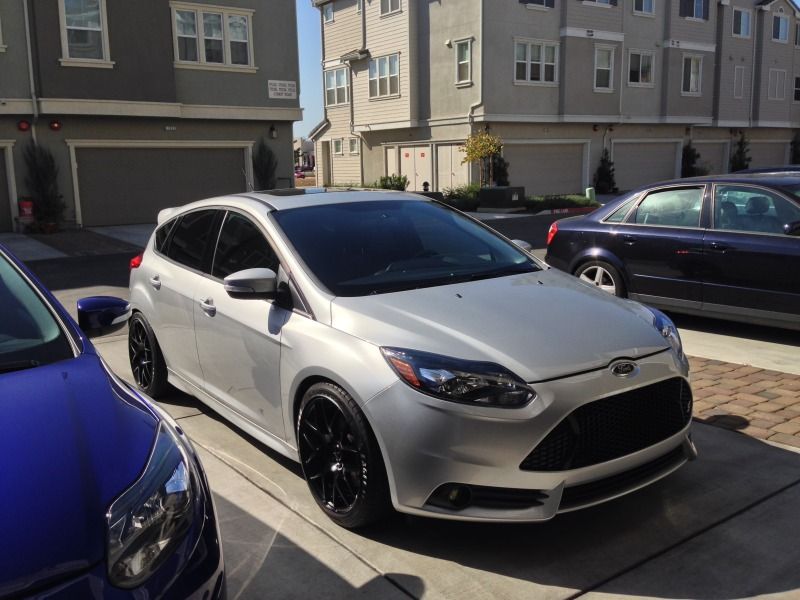

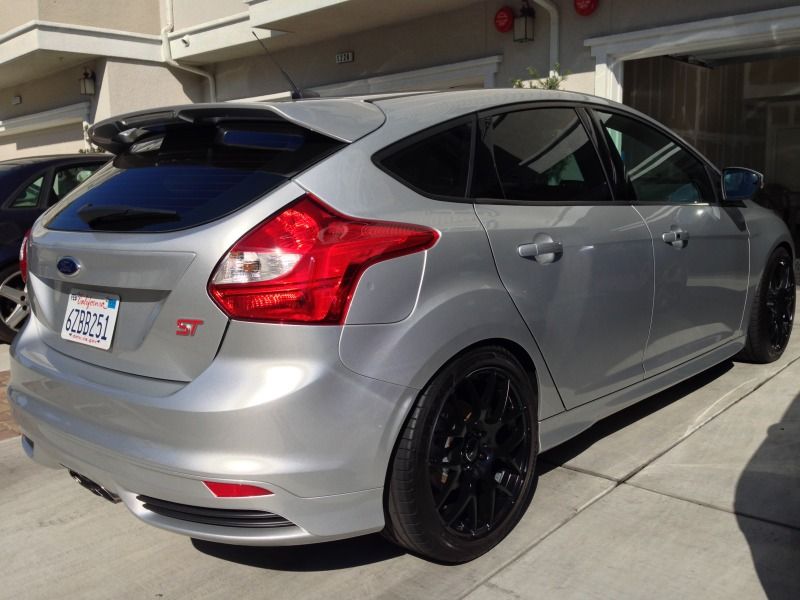

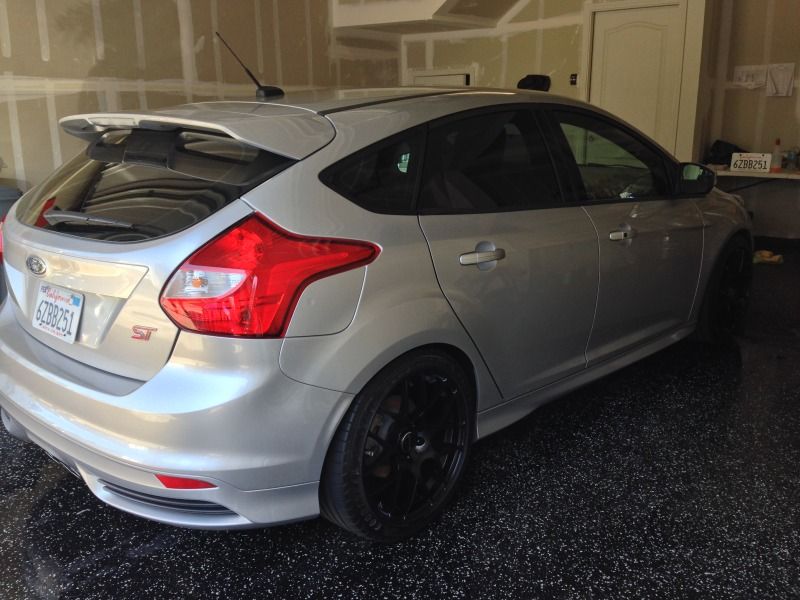

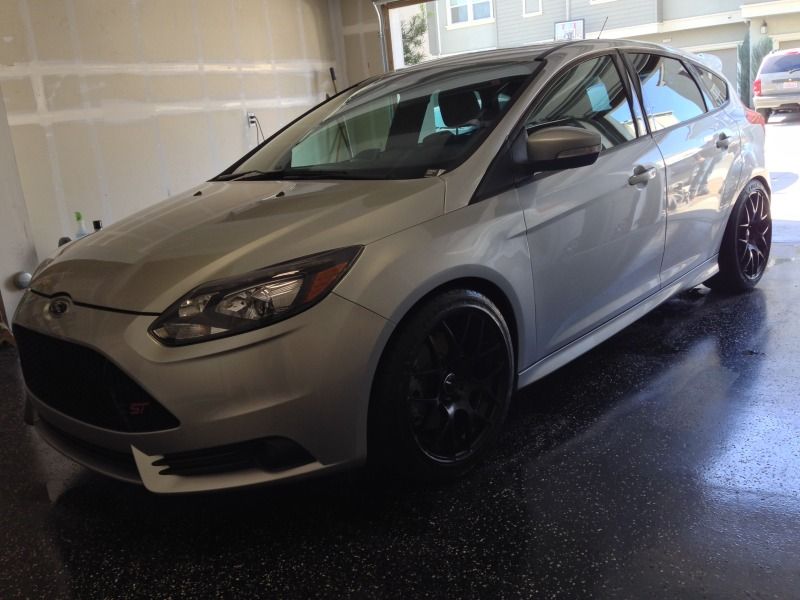

[myfocusst]

• Wheel - Avant Garde M310 - 18x8.5 +42 offset 5X108
• Tire - 235/40/18 HANKOOK K110 V12
• Custom 8.5 width with +42 offset
• No Fender modification

View attachment 28861 View attachment 28862 View attachment 28864 View attachment 28865
View attachment 21934 View attachment 21936



[Jeff007245]

Wheels: Ford Focus RS Wheels
Color: Black
Specs: 19x8.5
Offset: 60mm

Tires: Toyo Proxes 4
Specs: 245/35Z/19
Purpose: All Season

View attachment 21986 View attachment 21987 View attachment 21988 View attachment 21989

*Will Add Better Pictures*

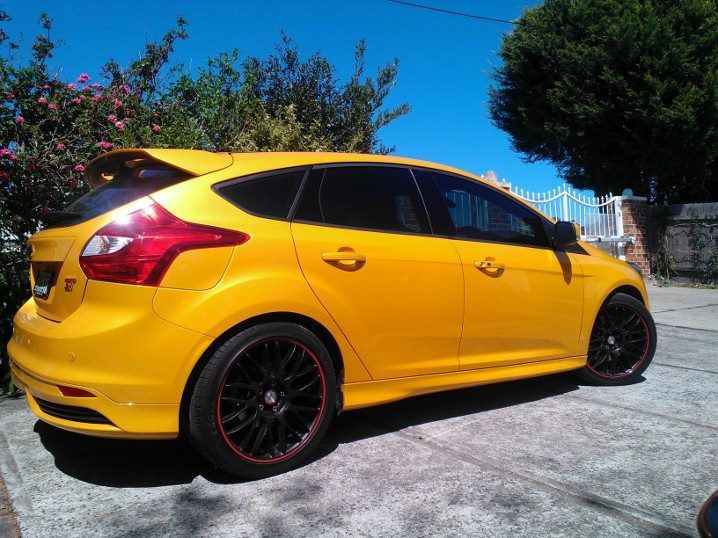

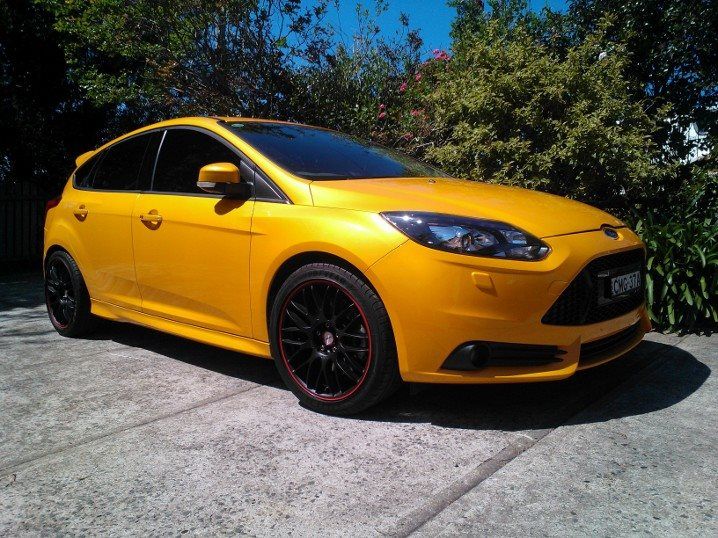

[auST]

Wheels: Lenso Mono Block Mesh
black with red lip
18x8
+40 offset
Had the PCD changed from 5x114.3 to 5x108, off set drilled the 114.3 holes to a larger dia and then had a steel insert pressed in

Tyres
OEM Eagle F1



[STreetz 5.0]

Very nice! I was thinking about going with a blue or white one for my PB.

Sent from my SPH-L710 using Tapatalk now Free



[jewish]

• Avant Garde M310 Mesh - 18x8.5
• Stock tires



[Cooper]

Yes they are sideways, I will fix them if someone knows how.

These are 16" 2002 Ford Windstar Limited wheels with 215/60-16. Yes they are bigger than stock, but hey they came with the wheel and they are good enough for a winter.



[ST2Focus]

* Ford Focus Titanium 5 Spoke rims: 5X108, 18X8, with 35mm offset * Goodyear GT All season tires, 235-40-18 * Standard factory stance

View attachment 22822 View attachment 22823 View attachment 22824​

Sorry, NYFocusST my submission here is not to taunt you! For others here in the forum, it was a gloomy wet day but I wanted to get these posted for others to reference.

Also these rims are supposed to be < 1lb per corner less than stock!



[egbertnr]

Wheel - Avant Garde M310 - 18x8.5 +42 offset 5X108 in Matte Bronze
Tire - Stock Goodyears
Custom 8.5 width with +42 offset



[islandsjake]

16" steelies with 205 55 gislaved nordfrosts.They have TPMS but the dealer couldn't get them to link up ????

View attachment 23338



[Weez55]

Just put on my winter setup.

Wheel:
Sport Tuning T6
Size: 17x7.5
Offset: +42mm
Backspacing: 5.87"
Bolt Pattern: 5-108
Weight: 22.8lbs.

Tire:
Goodyear Ultra Grip Ice WRT
215/50/17

Plasti dipped True Metallics Anthracite Gray

View attachment 23633 View attachment 23634 View attachment 23635 View attachment 23636 View attachment 23637 View attachment 23638 View attachment 23639



[njbin1]

My “winter” setup. I went with all-seasons because I’ll drive the Expedition in the snow. Just needed tires that would handle under 40 degrees.

Wheel:
Enkei Performance M52 HyperBlack
Size: 17x7.5
Offset: +38mm
Backspacing: 5.75"
Bolt Pattern: 5-108
Weight: 20.65lbs.

Tire:
Goodyear Eagle F1 Asymmetric All-Season
225/50ZR-17

View attachment 23897



[quaxo]

My winter setup.
16" sports, and ewc



[ElBigKahuna]

Motegi Racing MR122
18x8
5x108
+35mm offest

Bf Goodrich g-Force super sport All Season
235/40zr18

View attachment 24152
View attachment 24153
View attachment 24154
View attachment 24155



[LMStone510]

Winter wheels and tires:

• 17" x 7.5", 48 offset Sport Edition SE17 wheels in Anthracite semi-gloss. Weight 20.8 lbs.
• 235/45-17 Pirelli Sottozero Serie III winter tires (mountain snowflake logo). V speed rated and XL load rated.
• Gorrilla Black 60-degree lug nuts.

View attachment 24168 View attachment 24169 View attachment 24170 View attachment 24171 View attachment 24172



[OverboostFTW]

Volvo S60 "TETHYS"
17 x 7.5
5x108
49mm Offset
Plasti-dipped Vintage Gold

Pirelli 210 SnowSport
235/45 R17

View attachment 24330 View attachment 24331 View attachment 24332 View attachment 24333 View attachment 24334



[ST_Buckeye]

Here is my winter setup:

Wheel: Motegi MR116 18x8
Tire: Pirelli Sottozero Serie II 225/40R18



[13PBST3MOON]

Yesterday I installed a set of Firestone Winterforce 225/50-17 on "Sport Edition A8" 17x7.5 +48mm offset. With the 7.5" rims and +48 offset it puts the tires almost exactly at the same place as the stock tires relative to the fender.
Hope this helps others. Later.
View attachment 26184 View attachment 26185 View attachment 26186 View attachment 26187
